Galvanised Mild Steel V Grate & Frame

Galvanised Mild Steel V Grate & Frame — 600x600mm Class D

$412.30

Galvanised Mild Steel V Grate & Frame — 900x600mm Class D

$564.20

Galvanised Mild Steel V Grate & Frame — 900x800mm Class D

$860.25

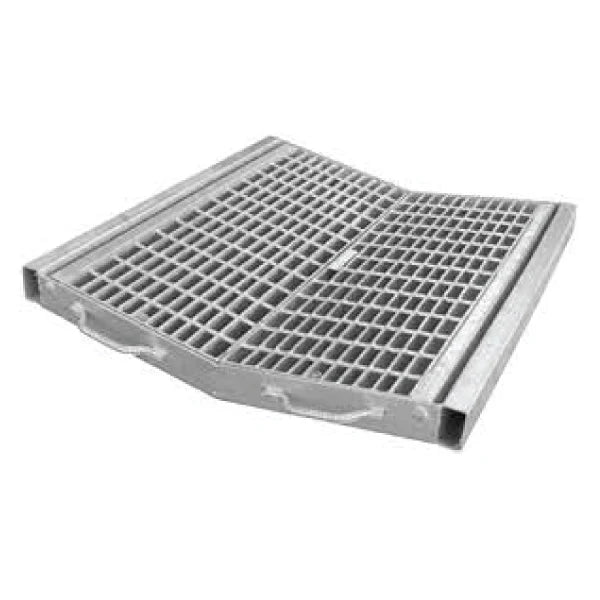

Galvanised Mild Steel V Grate & Frame

The Galvanised V Grate & Frame is a robust drainage solution engineered for efficient surface water management across residential, commercial, and industrial settings. Its V-shaped profile ensures optimal water flow to the center channel, reducing debris accumulation and improving runoff efficiency.

Key Features

  • Heavy-duty galvanized steel construction for superior strength
  • Integrated locking and lifting mechanism for secure fit and easy access
  • Durable, corrosion-resistant finish for extended outdoor use
  • Anti-slip surface for enhanced pedestrian and vehicle safety

Load Class Ratings (AS 3996 Compliant)

Class Typical Use Nominal Wheel Load (kg) Serviceability Design Load (kN) Ultimate Limit State Design (kN)
A Pedestrian areas only (e.g. walkways, backyards) 330 6.7 10
B Residential driveways, footpaths, parks 2,670 53 80
C Residential roads, low-speed car parks 5,000 100 150
D Major roads, warehouses, loading docks 8,000 160 210
E Freeways, heavy vehicle areas 13,700 267 400
F Docks, wharfs, airport taxiways 20,000 400 600
G Runways, ports, and high-load transport areas 30,000 600 900

Applications

  • Residential driveways and garages
  • Commercial car parks and forecourts
  • Public walkways and pedestrian zones
  • Industrial yards and warehouse access roads
  • Landscaped areas and external stormwater systems
