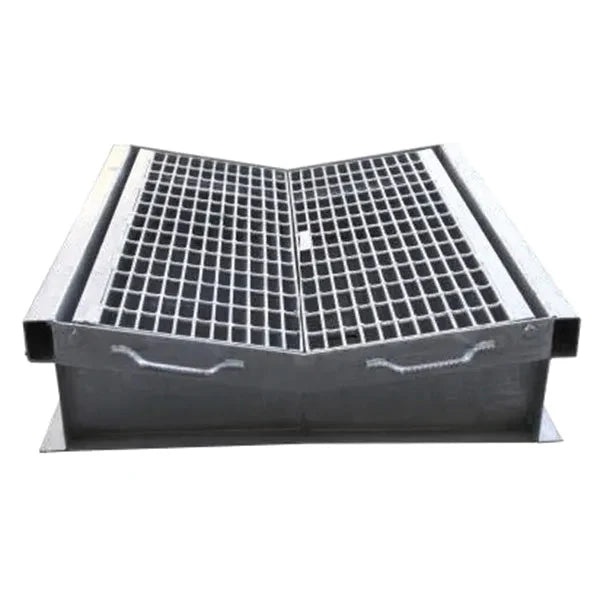

Galvanised Mild Steel Skirted V Grate & Frame
The Galvanised Mild Steel Skirted V Grate & Frame is a high-performance drainage solution built for heavy-duty surface water management in high-traffic areas. The V-profile design improves water flow efficiency, while the integrated skirted frame adds structural integrity for long-lasting durability.
Key Features
- Heavy-duty galvanized steel construction for superior strength
- Skirted frame enhances load support and stability
- V-profile trench promotes efficient water channeling
- Tapered grate edges for smoother water intake and safety
- Designed for minimal clogging and maximum surface runoff
Load Class Ratings (AS 3996 Compliant)
| Class | Typical Use | Nominal Wheel Load (kg) | Serviceability Design Load (kN) | Ultimate Limit State Design (kN) |
|---|---|---|---|---|
| A | Pedestrian areas only (e.g. walkways, backyards) | 330 | 6.7 | 10 |
| B | Residential driveways, footpaths, parks | 2,670 | 53 | 80 |
| C | Residential roads, low-speed car parks | 5,000 | 100 | 150 |
| D | Major roads, warehouses, loading docks | 8,000 | 160 | 210 |
| E | Freeways, heavy vehicle areas | 13,700 | 267 | 400 |
| F | Docks, wharfs, airport taxiways | 20,000 | 400 | 600 |
| G | Runways, ports, and high-load transport areas | 30,000 | 600 | 900 |
Applications
- Urban roads and commercial driveways
- Industrial yards and factories
- Loading docks and freight terminals
- High-traffic car parks and vehicle zones
- Public infrastructure and civic developments
