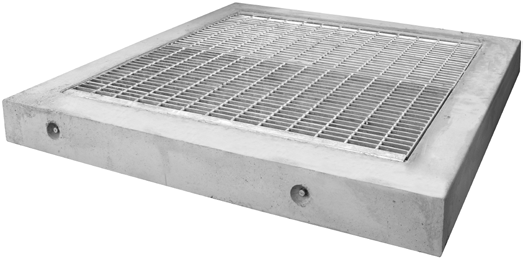

Galvanised Mild Steel Sump Grates – Hinged

Our Galvanised Mild Steel Sump Grates - Hinged are designed for safe, durable, and efficient surface water management across commercial, industrial, and civil applications.

Featuring a hinged mechanism, these grates provide secure access to underground sumps and pits without the need to fully remove the grate making them ideal for maintenance-heavy environments.

Fabricated from hot-dip galvanised mild steel, the grates offer excellent corrosion resistance and are available in various load classes (B, C, or D) to suit foot traffic, light vehicle, or heavy-duty use. These hinged sump grates are built to comply with AS 3996, making them suitable for councils, developers, and contractors across Australia.

Technical Specifications

Description Length (mm) Width (mm) Depth (mm)
450x450 Class B Grate and Frame Encased 800 800 150
450x450 Class D Grate and Frame Encased 800 800 200
600x600 Class B Grate and Frame Encased 900 900 150
600x600 Class D Grate and Frame Encased 1000 1000 200
900x600 Class B Grate and Frame Encased 1000 1300 200
900x600 Class D Grate and Frame Encased 1000 1300 200
900x900 Class B Grate and Frame Encased 1200 1200 150
900x900 Class D Grate and Frame Encased 1300 1300 200
1200x1200 Class B 2 Part Grate and Frame Encased 1600 1600 175
1200x1200 Class D 2 Part Grate and Frame Encased 1600 1600 225

Key Features

  • Hinged Access Design: Provides safe and convenient access without full removal.
  • Durable Galvanised Mild Steel: Hot-dip galvanised for long-term corrosion protection.
  • Secure Grate and Frame Assembly: Tight fit minimizes rattle and movement under load.
  • Slip-Resistant Surface: Reduces risk of slips and enhances safety.
  • Complies with AS 3996: Meets Australian standards for access covers and grates.
  • Fixed Frame Integration: Supports precast concrete installation for added strength.

Load Class Ratings (AS 3996 Compliant)

Class Typical Use Nominal Wheel Load (kg) Serviceability Design Load (kN) Ultimate Limit State Design (kN)
A Pedestrian areas only (e.g. walkways, backyards) 330 6.7 10
B Residential driveways, footpaths, parks 2,670 53 80
C Residential roads, low-speed car parks 5,000 100 150
D Major roads, warehouses, loading docks 8,000 160 210
E Freeways, heavy vehicle areas 13,700 267 400
F Docks, wharfs, airport taxiways 20,000 400 600
G Runways, ports, and high-load transport areas 30,000 600 900

Applications

  • Stormwater Sumps & Inspection Pits
  • Car Parks & Driveways
  • Industrial Yards & Warehouses
  • Council Parks & Public Facilities
  • Commercial Landscaping & Drainage Zones
  • Roadside Kerbs & Service Areas
