Galvanized Mild Steel Heelguard Trench Grating

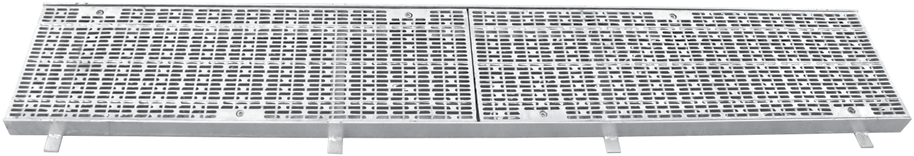

Our Galvanized Mild Steel Heelguard Trench Grating is a premium drainage solution combining strength, safety, and style. Manufactured from durable mild steel and finished with a hot-dip galvanised coating, this trench grate features a Heelguard pattern, a fine-slot design that prevents heels, wheels, and small objects from getting caught. Ideal for public spaces and commercial environments, it offers effective water flow while maintaining pedestrian safety.

Technical Specifications

Description Frame (L x W x D mm) Grate (L x W x D mm) Clear Opening (L x W mm)
150mm C/O Heelguard Trench G/F Class B per 2m length 2000 x 230 x 40 2x1000 x 210 x 35 150 x 2000
150mm C/O Heelguard Trench G/F Class D per 2m length 2000 x 250 x 50 2x1000 x 235 x 45 150 x 2000
225mm C/O Heelguard Trench G/F Class B per 2m length 2000 x 305 x 40 2x1000 x 290 x 35 225 x 2000
225mm C/O Heelguard Trench G/F Class D per 2m length 2000 x 335 x 55 2x1000 x 320 x 50 225 x 2000
300mm C/O Heelguard Trench G/F Class B per 2m length 2000 x 390 x 45 2x1000 x 375 x 40 300 x 2000
300mm C/O Heelguard Trench G/F Class D per 2m length 2000 x 400 x 75 2x1000 x 385 x 65 300 x 2000

Key Features

  • Heelguard Anti-Heel Slot Design: Prevents small objects and heels from getting trapped.
  • High Water Flow Capacity: Efficient drainage in urban and commercial areas.
  • AS 3996 Load Class Options: Available in multiple classes (B & D).
  • Slip-Resistant Surface: Provides safety in wet or public areas.
  • Durable and Corrosion Resistant: Built for long-term performance in outdoor conditions.

Load Class Ratings (AS 3996 Compliant)

Class Typical Use Nominal Wheel Load (kg) Serviceability Design Load (kN) Ultimate Limit State Design (kN)
A Pedestrian areas only (e.g. walkways, backyards) 330 6.7 10
B Residential driveways, footpaths, parks 2,670 53 80
C Residential roads, low-speed car parks 5,000 100 150
D Major roads, warehouses, loading docks 8,000 160 210
E Freeways, heavy vehicle areas 13,700 267 400
F Docks, wharfs, airport taxiways 20,000 400 600
G Runways, ports, and high-load transport areas 30,000 600 900

Applications

  • Public Walkways & Streetscapes
  • Shopping Centres & Commercial Buildings
  • Schools, Hospitals & Government Facilities
  • Outdoor Dining & Hospitality Venues
  • Pools, Parks & Landscaping Projects
