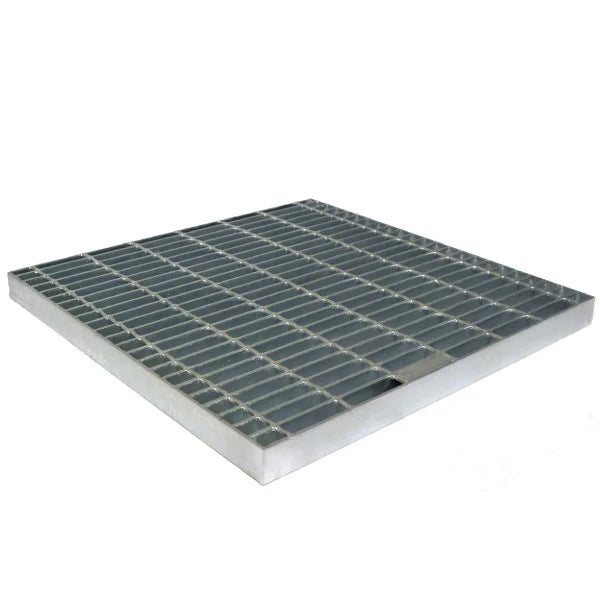

1200x1200mm C/O Drop In 2 Part Grate, HD Galvanised - Medium Duty (O'all dim. 1290x1290x___mm)

1200x1200mm C/O Drop In 2 Part Grate, HD Galvanised - Medium Duty (O'all dim. 1290x1290x___mm)

$940.85

1200x1200 C/O Drop-In 2-Part Grate – HD Galvanised (Medium Duty)

The 1200x1200 C/O Drop-In 2-Part Grate in HD Galvanised finish is a medium-duty drainage solution designed for efficient access and reliable surface water management.

 Suitable for commercial and light industrial environments, its two-part configuration allows easy maintenance while maintaining structural integrity.

Key Features

  • Heavy-Duty Galvanised Finish: Corrosion-resistant coating ensures long-lasting performance in outdoor and wet environments.
  • Drop-In 2-Part Design: Split configuration allows easy lifting and access to underlying pits or services.
  • Medium Duty Load Rated: Suitable for applications with pedestrian use and light to moderate vehicle traffic.
  • Anti-Slip Surface: Grate surface designed for enhanced traction and public safety.
  • Flush Fit Installation: Provides a neat and seamless finish with surrounding surfaces.
  • Engineered for Durability: Manufactured to withstand demanding commercial conditions while maintaining structural integrity.
  • Low Maintenance Access: Easy to remove for cleaning or servicing without needing specialised tools.

Load Class Ratings (AS 3996 Compliant)

Class Typical Use Nominal Wheel Load (kg) Serviceability Load (kN) Ultimate Load (kN)
A Pedestrian areas (e.g. walkways, backyards) 330 6.7 10
B Residential driveways, parks 2,670 53 80
C Low-speed car parks, light vehicle areas 5,000 100 150
D Warehouses, loading docks 8,000 160 210
E Heavy vehicle zones, freeways 13,700 267 400
F Airports, docks 20,000 400 600
G Ports, runways 30,000 600 900

Applications

  • Commercial Driveways & Car Parks: Ideal for areas with regular light to medium vehicle traffic.
  • Warehouses & Loading Bays: Supports safe drainage without obstructing forklifts or pallet trolleys.
  • Shopping Centres & Retail Areas: Flush finish provides safety and accessibility for pedestrian zones.
  • Maintenance & Access Pits: Two-part design allows quick removal for service access to underground utilities or cable pits.
  • Service Stations & Workshops: Resistant to oil, grease, and medium-impact vehicle loads.
  • Schools, Parks & Public Spaces: Safe and durable for use in open areas with occasional vehicle movement.
